Transfer Molding And Extrusion Plastic Molding Process Of Making Plastics

Transfer molding, also called extrusion or gate molding , is the process of forming articles in a closed mold, where the fluid plastic material is conveyed into the mold cavity under pressure from outside of the mold.

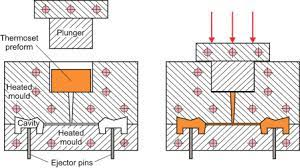

The material, often a preheated preform, is placed in a heated transfer pot. As soon as the material is sufficiently softened, the plunger forces the almost fluid plastic through the orifice (sprue) into the closed mold where final cure takes place. Pressures used are 50 to 100% higher than those used for compression molding ; thus better details and higher strengths are possible .

Extrusion Molding :

Extrusion means the continuous flow of material through a die. Extrusion molding is used mostly for production of sheet, tube bar and typical applications in thermoplastic materials. Granulated powder made of such materials as vinyl resins, cellulose derivatives, nylon, polyethylene and polypropylene make up the materials used in the process.

Plastic extrusion machine consists of hopper into which the powder or pellets are fed into a heated cylinder, the screw feeding mechanisms, a nozzle and the die assembly. The rotating screw carries the heated plastic forward and forces it through heated die orifice of the required shape. As it leaves the die, it is gradually cooled by carrying it through cooling media while resting on a conveyor, It is then wound into coils or cut to desired lengths.

There are advantages to the extrusion process. The tooling is low- cost compared to Injection molding. Material thickness can be accurately controlled. In addition, production rates are high and intricate profiles can be produced.

Comments

THROTTLE GOVERNING OF STEAM TURBINES

Steam Pressure at inlet to a steam turbine is reduced by throttling process to maintain the speed of the turbine constant at part load and hence this method of governing is called "Throttle Governing". Construction : Throttle governing system consists of a centrifugal governor, a lever , an oil pump , a pilot piston , control valve , a relay piston and a throttle valve. The throttle valve is moved by a relay piston. The relay piston is actuated by pilot piston control valve. There are two piston valves covering ports in the pilot piston control valve without any overlap. These piston valves are operated by lubricating oil supplied by a gear pump at 2 to 4 bar. The oil returns to the drain from this chamber. Working : When the turbine works on full rated load, the throttle valve will remain open. When the load is decreased, the energy output of the turbine becomes in excess and the turbine shaft speed increases. Hence, governor sleeve will lift. The upward movement of the

ELECTRICAL COMPARATORS AND ITS WORKING

Electrical Comparators are used as a means of detecting and amplifying small movements of a work contacting elements. An electrical comparator consists essentially of a pick-up head or transducer for converting a displacement into a corresponding change in current and a meter or recorder connected in the circuit to indicate the electrical change, calibrated to show in terms of displacement. Generally, an amplifier is needed to provide the requisite sensitivity and to match the characteristics of different parts of the circuit. Electrical comparators can be classified according to the electrical principle used in the pick-up head. Most of the comparators use either a differential transformer, an inductance bridge, a strain gauge or a capacitor as a means of detecting movement of the gauging element. There are different types of electrical comparators. One kind called an electrolimit gauge is used to check or measure the outside diameter of a roll. The object to be checked is place

Advantages And Disadvantages Of Air Refrigeration System :

Advantages Of Air Refrigeration : 1. The refrigerant used namely air is cheap and easily available. 2. There is no danger of fire or toxic effects due to leakages. 3. The weight to ton of refrigeration ratio is less as compared to other systems. Disadvantages Of Air Refrigeration : 1. The quantity of Refrigerant used per ton of refrigeration is high as compared to other systems. 2. The COP of the system is very low. Therefore running cost is high. 3. The danger of frosting at the expander valves is more as the air contains moisture content.
