PLASTER MOLDING PROCESS AND ITS ADAVANTAGES

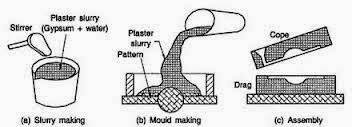

In this method, the mold is prepared in gypsum or plaster of Paris. In practice, The plaster of Paris is mixed with talc, asbestos, fibers, silica flour, and a controlled amount of water to form a slurry. This plaster slurry is poured over the metallic pattern confined in a flask. The mold is vibrated and the slurry allowed to set. The pattern is removed after about 30 minutes when the setting is complete and the mold is dried. and backed by slowly heating it to about 200*C in a conveyor oven. Inserts and cores are placed, cope and drag matched by guide pins. Molten metal is then poured into the mold. Finally, the casting is cooled in the mold, shaken out and the mold is destroyed. Castings are then trimmed of gates, sprues and flash.

Advantages of Plaster Molding are :

1. Warping and Distortion of thin sections can be avoided since plaster has no chilling tendency due to low rate of heat conductivity.

2. A high degree of dimensional accuracy and surface finish is obtained, and machining cost, is therefore , eliminated.

3. Highly suitable for reproduction of fine form and detail as are necessary for ornamental castings , statues, jewelry, etc. besides being used for engineering components.

Limitations of Process are :

1. Low Permeability of Plaster of Paris.

2. Suitable only for non-ferrous castings owing to the fact that plaster of Paris destroys at 1200*C

Comments

Advantages And Disadvantages Of Air Refrigeration System :

Advantages Of Air Refrigeration : 1. The refrigerant used namely air is cheap and easily available. 2. There is no danger of fire or toxic effects due to leakages. 3. The weight to ton of refrigeration ratio is less as compared to other systems. Disadvantages Of Air Refrigeration : 1. The quantity of Refrigerant used per ton of refrigeration is high as compared to other systems. 2. The COP of the system is very low. Therefore running cost is high. 3. The danger of frosting at the expander valves is more as the air contains moisture content.

ELECTRICAL COMPARATORS AND ITS WORKING

Electrical Comparators are used as a means of detecting and amplifying small movements of a work contacting elements. An electrical comparator consists essentially of a pick-up head or transducer for converting a displacement into a corresponding change in current and a meter or recorder connected in the circuit to indicate the electrical change, calibrated to show in terms of displacement. Generally, an amplifier is needed to provide the requisite sensitivity and to match the characteristics of different parts of the circuit. Electrical comparators can be classified according to the electrical principle used in the pick-up head. Most of the comparators use either a differential transformer, an inductance bridge, a strain gauge or a capacitor as a means of detecting movement of the gauging element. There are different types of electrical comparators. One kind called an electrolimit gauge is used to check or measure the outside diameter of a roll. The objec...

THROTTLE GOVERNING OF STEAM TURBINES

Steam Pressure at inlet to a steam turbine is reduced by throttling process to maintain the speed of the turbine constant at part load and hence this method of governing is called "Throttle Governing". Construction : Throttle governing system consists of a centrifugal governor, a lever , an oil pump , a pilot piston , control valve , a relay piston and a throttle valve. The throttle valve is moved by a relay piston. The relay piston is actuated by pilot piston control valve. There are two piston valves covering ports in the pilot piston control valve without any overlap. These piston valves are operated by lubricating oil supplied by a gear pump at 2 to 4 bar. The oil returns to the drain from this chamber. Working : When the turbine works on full rated load, the throttle valve will remain open. When the load is decreased, the energy output of the turbine becomes in excess and the turbine shaft speed increases. Hence, governor sleeve will lift. The upward movemen...
